ResMed AirSense S10 Power Supply
ResMed AirSense S10 Power Supply
Need Help? Call us: (1)519 333-6620
Login to see priceAirSense S10 Power Supply

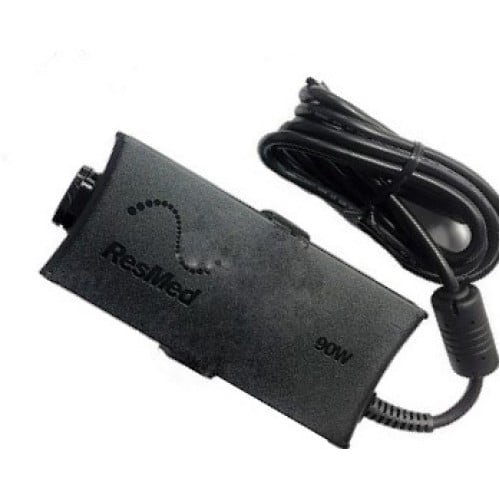

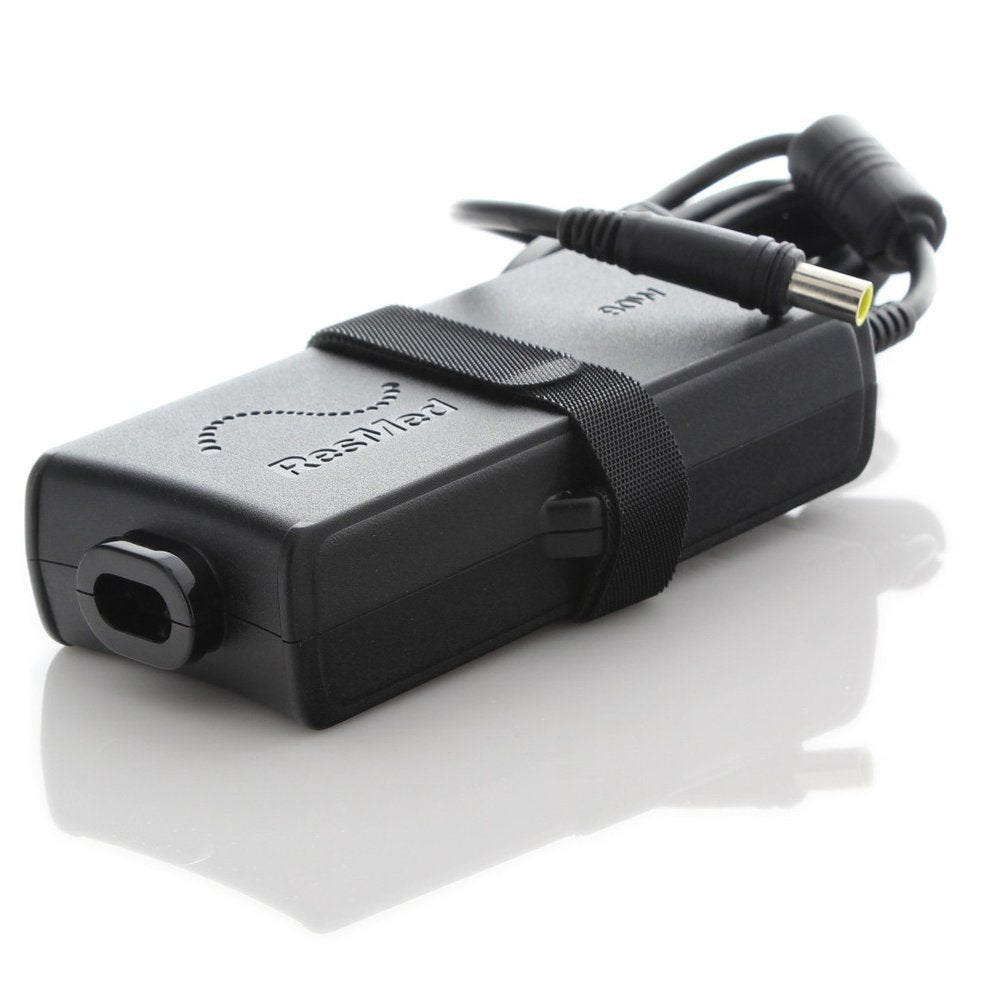

The ResMed AirSense™ 10 & AirCurve™ 10 External 90W Power Supply provides reliable power for all compatible CPAP and BiPAP machines in the AirSense 10 and AirCurve 10 series.
This set includes both the power supply unit and the AC power cord that plugs directly into a standard wall outlet.
Specifications
Included in the Box
AirSense 10 90W External Power Brick
Power Cord
Compatibility
Designed for ResMed AirSense™ 10 and AirCurve™ 10 Series CPAP & BiPAP machines:
AirSense™ 10 CPAP with HumidAir™ Heated Humidifier
AirSense™ 10 Elite CPAP with HumidAir™ Heated Humidifier
AirSense™ 10 AutoSet CPAP with HumidAir™ Heated Humidifier
AirSense™ 10 AutoSet for Her CPAP with HumidAir™ Heated Humidifier
AirCurve™ 10 S BiLevel with HumidAir™ Heated Humidifier
AirCurve™ 10 VAuto BiLevel with HumidAir™ Heated Humidifier
Dimensions (Power Supply Only)
Length: 5.5 in (14 cm)
Width: 1.88 in (4.8 cm)
Depth: 1.25 in (3.2 cm)
Weight (Power supply with cord & plug)
1.29 lbs (0.59 kg)
Electrical Specifications
AC Input (90W Power Supply): 100–240V, 50–60Hz, 1.0–1.5A, Class II
DC Output (90W Power Supply): 24V — 3.75A
Power Consumption
Typical: 53W (57VA)
Peak: 104W (108VA)
Important Notes:
This is an AC power supply only — it cannot be used with DC power sources.
Designed specifically for 90-watt output to ensure optimal machine performance.
