AirSense 10 Autoset CPAP - 4G Modem & ClimateLineAir Heated Tubing

Your purchase Includes:

AirSense™ 10 Autoset Machine with cellular modem

AirSense™ 10 Climateline Air Heated tubing

Built-In HumidAire Humidifier

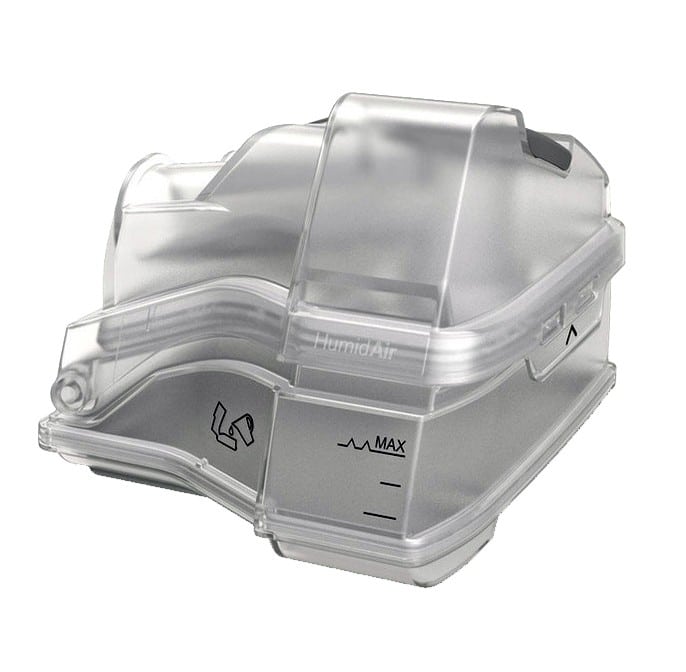

Standard Humidifier Chamber

Power Supply and Cord

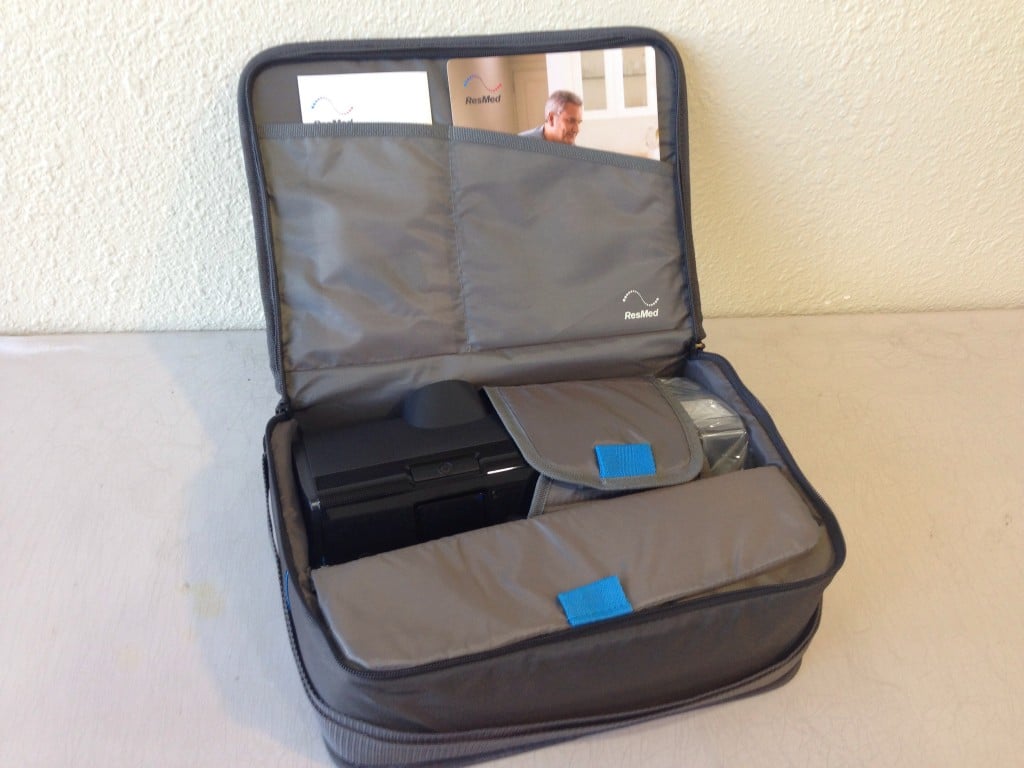

Travel Bag

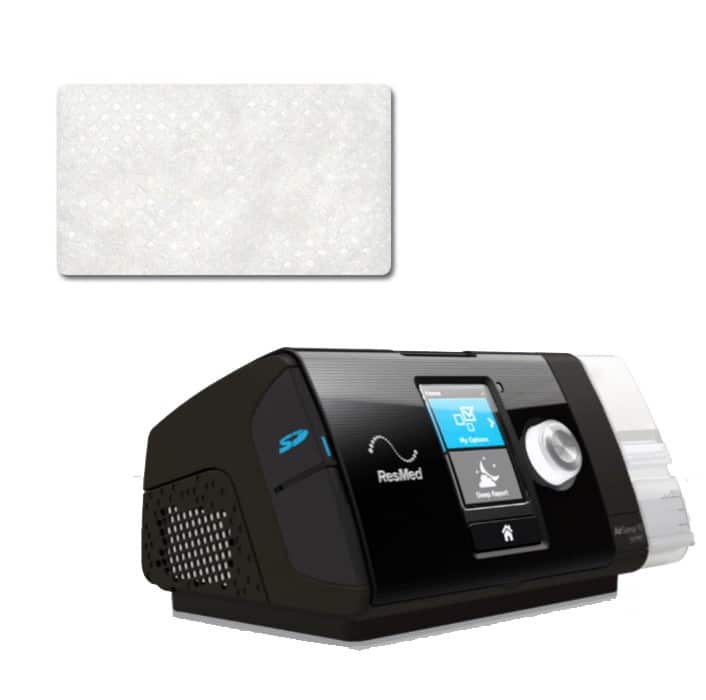

1- Standard Filter (Installed)

Filter Cover

Patient Manual

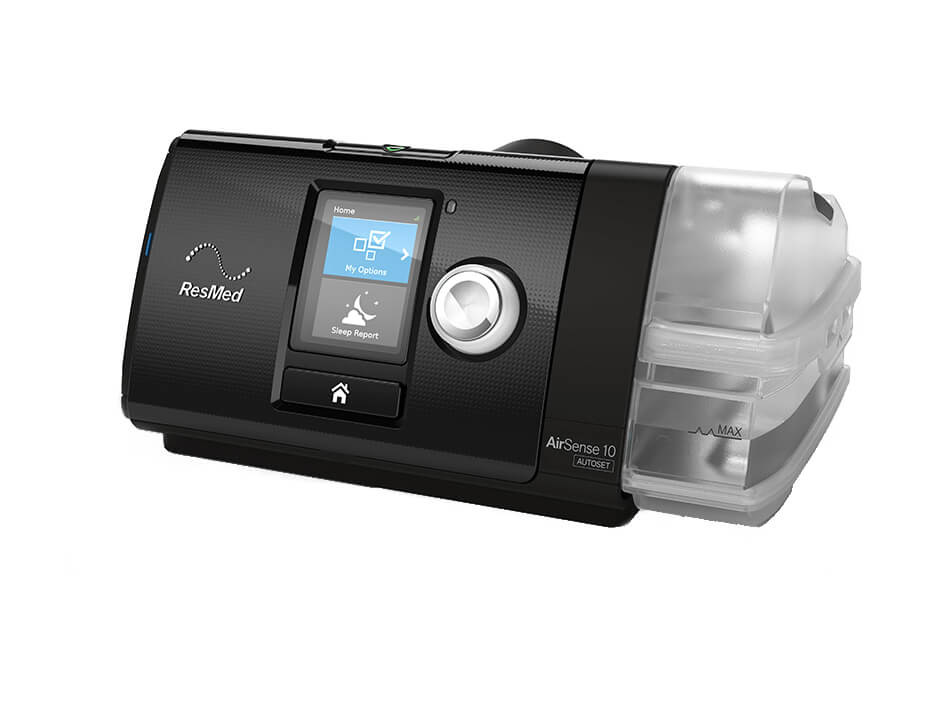

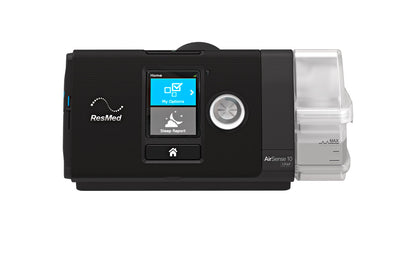

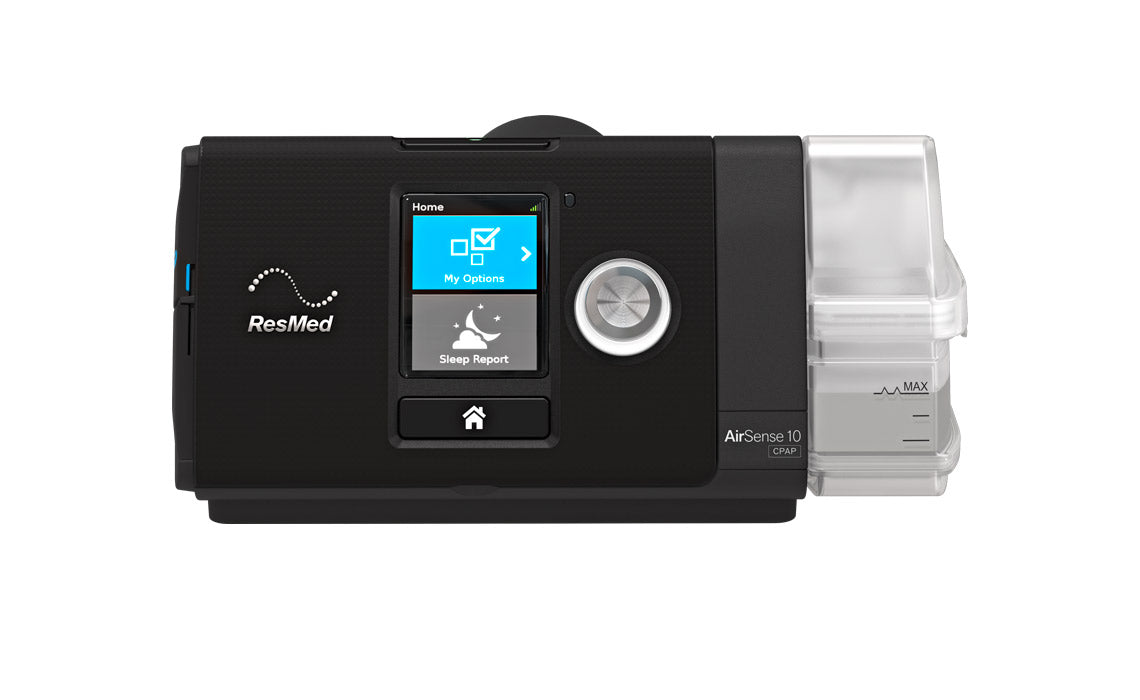

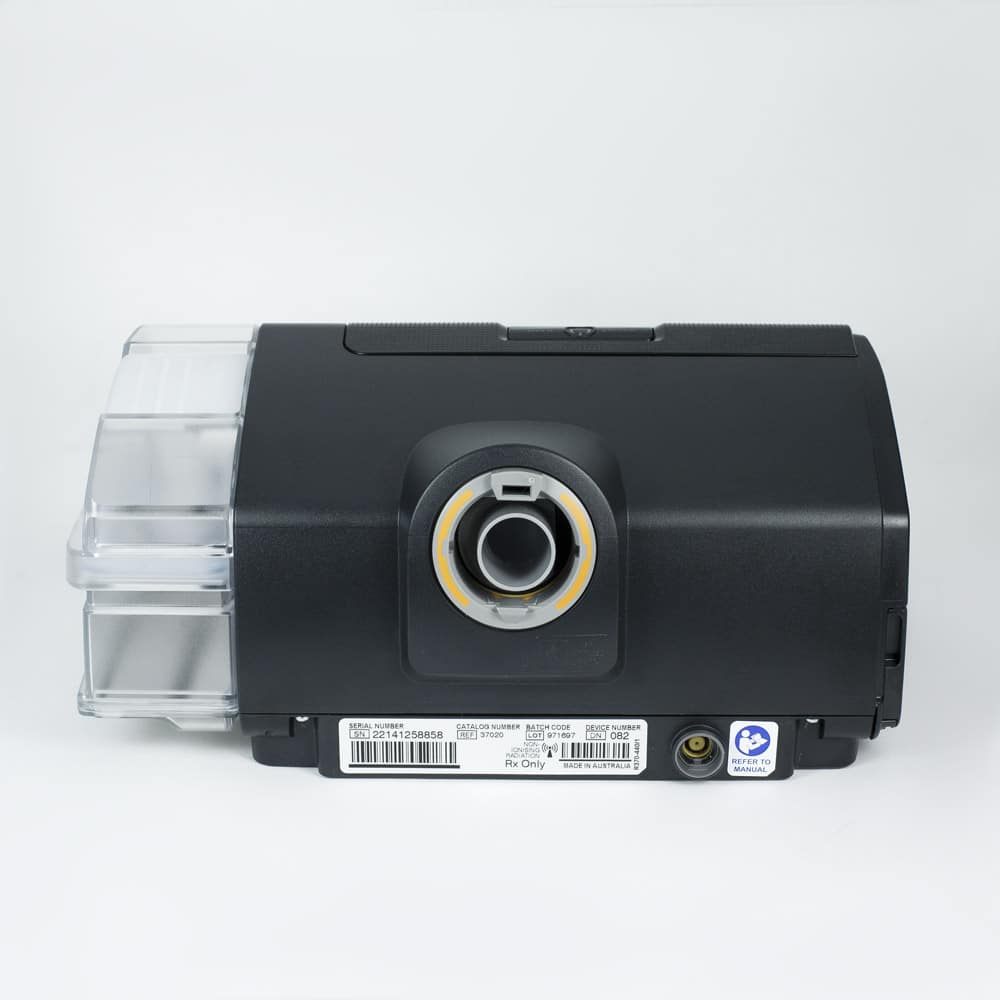

ResMed AirSense 10 Autoset CPAP

Experience restorative sleep with the ResMed AirSense 10 Autoset CPAP. This device features real-time pressure adjustments and personalized therapy options, including HumidAir™ and optional ClimateLineAir™ heated tubing for enhanced comfort.



Key Features:

Autoset Algorithm: Continuously adjusts pressure throughout the night to maintain an unobstructed airway for optimal rest.
4G Connectivity: Seamlessly transfers therapy data to the cloud, enabling you to monitor your sleep progress and share insights with your healthcare team.
SmartStart: Detects your breathing and initiates therapy automatically.
Mask Leak Detection: Monitors for potential leaks, ensuring a secure fit.
AutoRamp: Starts at a lower pressure for comfort and adjusts to your prescribed level once you fall asleep.
Climate Control: Maintains optimal humidity and temperature for a comfortable night's sleep.
MyAir App: Access advanced sleep analysis and insights, easily share data without manual downloads.



Cleaning Instructions

Hand wash the chamber weekly with warm water and mild detergent; rinse and air dry out of direct sunlight. Clean the SlimLine hose similarly and ensure it dries completely before reattaching.



Product Specifications

Weight – Machine with Water Chamber: 2.75 lbs (44 oz.)

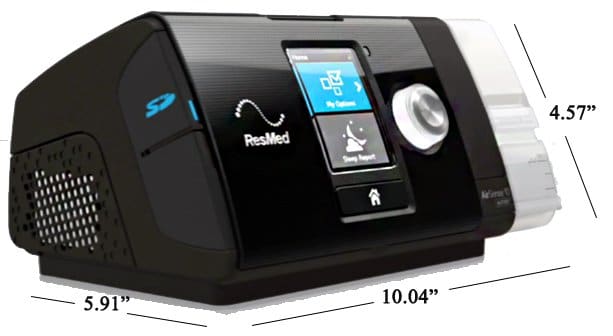

Dimensions – Machine with Water Chamber: 10.04 in L x 4.57 in W x 5.91 in H

Weight – Standard Chamber: .54 lb

Weight – Machine with Side Cover (Without Water Chamber): Approx. 2.452 lbs

Dimensions – Machine with Side Cover (Without Water Chamber): Approx. 8 in L x 4.57 in W x 5.91 in H

Dimensions – Travel Bag: 13.24 in L x 10 in W x 5 in H

Weight – Travel Bag Alone: 1.18 lb

Weight – Machine with Humidifier; Power Supply and Cord; SlimLine Tube; Travel Bag:Approximately 5.1 lbs

Weight – Machine with Humidifier; Power Supply and Cord; OPTIONAL ClimateLineAir Tube; Travel Bag: Approximately 5.25 lbs

Sound Level: 26.6 dBA

Water Chamber Capacity: 380 mL

Weight – 90W Power Supply, Cord and Plug: 1.29 lb

Dimensions – 90W Power Supply Only (Not including Cor or Plug): 5 1/2 in x 1 7/8 in x 1 1/4 in

AC Input Range – 90W Power Supply: 100 – 240V, 50 – 60Hz, 1.0 – 1.5A, Class II

DC Output – 90 W Power Supply: 24V — 3.75A

Typical Power Consumption: 53W (57VA)

Peak Power Consumption: 104W (108VA)

Operating Pressure: 4 – 20 cm H2O

Length – SlimLine Tubing: 6 feet

Materials – SlimLine Tubing: Flexible Plastic

Materials – Water Chamber: Injection Molded Plastic, Stainless Steel, Silicone Seal

Materials – Standard Filter: Polyester non-woven fiber

Temperature Range – Optional ClimateLineAir™ Heated Tube: 60 – 80° F (16 – 30° C)

Operating Temperature: 41° F – 95° F (5° C – 35° C)

Storage and Transport Temperature: -4° F – 140° F (-20° C – 60° C)

Operating Humidity: 10% – 95% Relative Humidity, non-condensing

Storage and Transport Humidity: 5% – 95% relative Humidity, non-condensing

Operating Altitude: Sea Level – 8500 Feet (2,591 M); Air pressure range 1013 hPa – 738 hPa

Maximum Temperature – Heating Plate: 154° F (68° C)

Maximum Temperature – Cut Out: 165° F (74° C)

Maximum Gas Temperature: Less than or Equal to 106° F (? 41° C)

IEC 60601-1:2005 Classification: Class II (Double Insulation), Type BF, Ingress protection IP22

Machine Warranty: 2 Years

Patient Weight: Greater than 66 lbs
